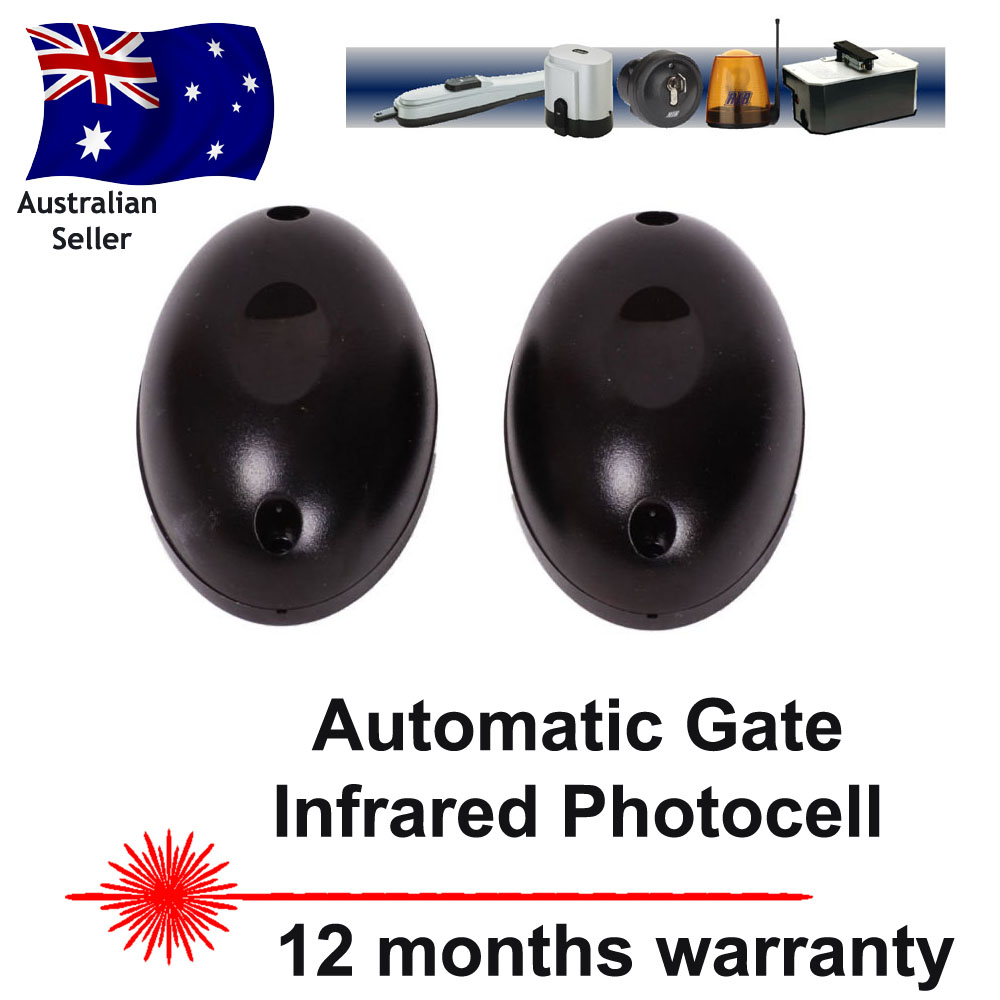

Infrared Photocell Safety beam Gate & Door sensor

Infrared Photocell Safety beam Gate & Door sensor
  • Click to enlarge

RRP $55.00
Price $44.00

Product Information
Specification
Infrared Safety Photocell Sensor (safety beam)
Unlike any others, see below picture to compare!

1 year genuine Australian Warranty
  • Thicker mounting plate with bottom cable entry makes for an easier installation

  • Self-contained surface mount active infrared safety beam for interior of exterior use

  • Weather resistant

  • Automatic sliding gate ,swing gate ,garage door ,pedestrian door ,industrial door etc

  • Suitable for universal installations.

  • Can Replace any brand of relay type such as FAAC, CAME, Liftmaster,  Ditec, RIB, Fadini, B&D, ATA, BFT........



Our photocell on the left is much better than other standar versions available.




GGR quality photocell on Left                                                                    Standard photocell on right





Thicker mounting plate which will not crack, bottom cable entry which will allow you to have a conduit with cable underneath



  • We have personally installed hundreds of these and not one has failed.





Technical Specification  Type
Technology   Active infrared
Detection Method Through Beam
Sensing Range 15 meters
Wave Length 940nm
Infra Red Frequency 1.92Khz
Relay output 1Amp max 36V
Supply voltage 12 -24V AC or DC
Dimension 76mm X 49.2mm X 21.6m



Simple Wiring

 Installation Tips:

Apply silicone around sensor mounting plate after installation

It is also good practice to silicone the 2 front cover screws.









Product CodeGGR-PC
